สัญญาณกันขโมยแบบเดินสาย HONEYWELL รุ่น 238C Plus ....

หน้าแรก » เครื่องเขียน และ อุปกรณ์สำนักงาน » เครื่องเขียน และ อุปกรณ์สำนักงาน อื่นๆ

สัญญาณกันขโมยแบบเดินสาย HONEYWELL รุ่น 238C Plus ....

แบ่งปันให้เพื่อน

สัญญาณกันขโมยแบบเดินสาย HONEYWELL รุ่น 238C Plus



สัญญาณกันขโมยแบบเดินสาย HONEYWELL รุ่น 238C Plus

รายละเอียด:

+ ระบบ Honeywell 238C พลัสการบุกรุกที่สองให้การเดินสายง่ายส่วนติดต่อผู้ใช้ที่ง่าย,
การเขียนโปรแกรมอย่างง่ายการดำเนินงานที่มั่นคงและมีคุณสมบัติที่เหนือกว่าให้กับผู้ใช้
ด้วยการรวมกันสูงสุด 4 LED หรือแผงปุ่มกดที่หน้าจอ LCD
+ 238C พลัส II ให้บริการการใช้งานในพื้นที่อยู่อาศัย
ร้านค้าปลีกและสำนักงานขนาดเล็กของโรงงาน
1) 238C คุณสมบัติพลัส II
238C พลัส II ตั้งค่าง่ายมีผู้ใช้ระบบที่สมบูรณ์มี 8 โซนเตือนภัยและปัจจัยการผลิต 15 บัญชีผู้ ใช้ระบบรหัสผ่านล็อคกุญแจ,
2)255 เหตุการณ์ล็อกและดูสุนัข, ไฟ AC และการตรวจสอบสายโทรศัพท์ ระบบเพื่อให้ง่ายต่อการติดตั้งและผู้ใช้สามารถใช้งานระบบได้โดยไม่ต้องยุ่งยากใด ๆ
ขอบคุณไปยังผู้ใช้แป้นพิมพ์ที่เป็นมิตร

ระบบรวมถึงแผงควบคุมหลัก, ไฟ LED จอแอลซีดีและปุ่มกด

? 8 คือ on - board เอาท์พุทริกเกอร์
? 4 รหัสผู้ใช้ระบบ
? 15 คือ on - board โซนฮาร์ดแวร์
? 255 เหตุการณ์ล็อกที่สามารถดูได้ที่แผงปุ่มกดระบบที่มีเวลา / วันที่
?สนับสนุนได้มากถึง 4 ตัวเลขที่ได้รับ
?เลือกการตอบสนอง 5ms, 50ms, 250ms, 500ms, 750ms

รายละเอียด:

238C Plus Control
Panel
8 Zones Mini Intrusion System
"SIMPLE IS PERFECT". Honeywell 238C Plus series mini intrusion system provides simple wiring,
simple user interface, simple programming, stable operation and superior features to the users. The
target of using 238C Plus is easy to get the work done. System integrator does not need to have
the complicated steps for system installation and setup, and the users can operate the system
easily via the well-designed keypad.
238C Plus series system includes main control panel, LED keypad and LCD keypad. This simple
configuration offers the users a complete system with the functions of 8 zones alarm input, 15
system user accounts, password key lock, 35 events log, and watch dog, AC power and phone line
monitoring. With the combination of maximum 4 LED or LCD keypads, 238C Plus serves the
applications in residential areas, retail shops, offices and small scale factories.
System compatibility of 238C Plus is undoubted. The system supports up to 7 different types of
communication formats and can be set to connect to maximum 4 receivers individually. A complete
CMS solution of 238C Plus control panel and MX8000 receiver is recommended for high capacity
remote alarm monitoring. User can enjoy the four times phone Iine redundancy of 238C Plus and
totally 36 phone Iines support from the MX8000 receivers.
FEATURES
Multi Communication Formats Support
Built-in adjustable time display (RTC)
Max. 35 event log
Remote download of event log
Key switch arm / disarm
Password Key Lock
Built-in watch dog processor / AC Power Loss and
Phone Line Connection status monitoring
Max. 15 user accounts with dual user access levels
Built-in relay output for local alarm notification
Accessories :

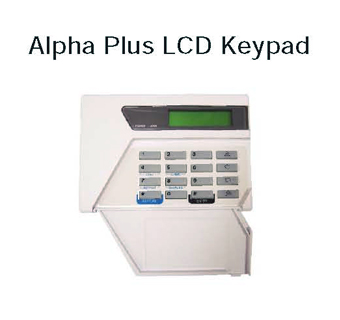

Alpha Plus LCD Keypad
238C Plus LED

238C Plus Control Panel
8 Zones Mini Intrusion System

SPECIFICATIONS
ITEM
DESCRIPTION
Max. Zone Number
8 zones
No. of User Account
Total 15 (1 Master Code / 14 User Code)
No. of User Access Level
2
No. of Keypad Connection
4 (Selectable combination of LED and LCD Keypads)
No. of User Relay Output
2
Types of Event for Relay Output
Entry Delay / Exit Delay / Arm / Disarm / Alarm Triggering / Clear Alarm Log / AC Power Loss / Battery Voltage Low / Phone Line Cut / Communication Error
Arm/ Disarm Interface
LED Keypad / LCD Keypad / Key Switch
Real Time Clock Display
Time adjustment and display via LCD Keypad
Max. No. of Event Log
35 Events (Latest)
Max. No. of Receivers
4
Communication Format
3/1 (Single) ; 3/1 (Expand) ; 4/2 ; 4/1 ; CFSK III; Ademco DTMF ; Contact ID
Status Monitoring
System Watch Dog / AC Power Loss / Phone Line Connection
AC Power Loss Detection Time Selection
5, 10, 15 minutes
Phone Line Status Check Time Selection
1, 2, 4 minutes
Power Source
Transformer
16.5Vac, 25W - 40W
Battery
6.5AH 12Vdc Rechargeable Battery
Alarm Output Voltage
1.3Amps, 10.5 - 13.5Vdc
Assistant Power Source
500mA, 12Vdc
Size
261mm 256mm 70mm
Optional Keypads
Alpha Plus LCD Keypad
238C Plus LED Keypad

+ Reslution 800x600 pixels
+ Effective 162 ( W) x121.5(H)mm
+ Viewing range Brighthess 250 cd/m Contrast 400 : 1
4) Audio Input Output
+ Audio Output Line out
+ Audio Input Left&Right trach
5) Power Adapter
+ AC input AC100 - 240V- 50/60 HZ
+ DC output DC12V = 400mA
6) Other Spectfication
+ Dimension 196x182x27.3 mm
+ Weight ( Main Device ) Approx.450g





ราคา: ไม่ระบุราคาต้องการ: ขาย
ติดต่อ: บริษัท เอ็ม.วี.คอมพิวเตอร์ จำกัด (สาขางามวงศ์วาน)  อีเมล์:
สภาพ: ใหม่ จังหวัด: นนทบุรี
โทรศัพย์: 029-512782
มือถือ: 083-0468241
ที่อยู่: ศูนย์การค้าพันธุ์ทิพย์พลาซ่า *งามวงศ์วาน
